Control Cable – Reduced Dimensions
The TRATOSMART® (N)SHTOU-JZ and TRATOSMART® (N)SHTOU-JZK control cables are designed for demanding industrial control applications where reduced cable dimensions are required without compromising performance. Featuring individually screened cores, premium EPR insulation, an anti-torsional design and a durable rubber sheath, these cables deliver reliable signal transmission, excellent flexibility and long service life in challenging operating environments.
✔ Benefits
- Compact reduced-dimension cable design
- Individually screened cores for signal integrity
- Excellent flexibility for moving applications
- Anti-torsional construction
- Heavy-duty rubber insulation and sheath
- Tinned flexible copper conductors
- High resistance to mechanical stress
- Reliable industrial performance
- Long service life in demanding environments

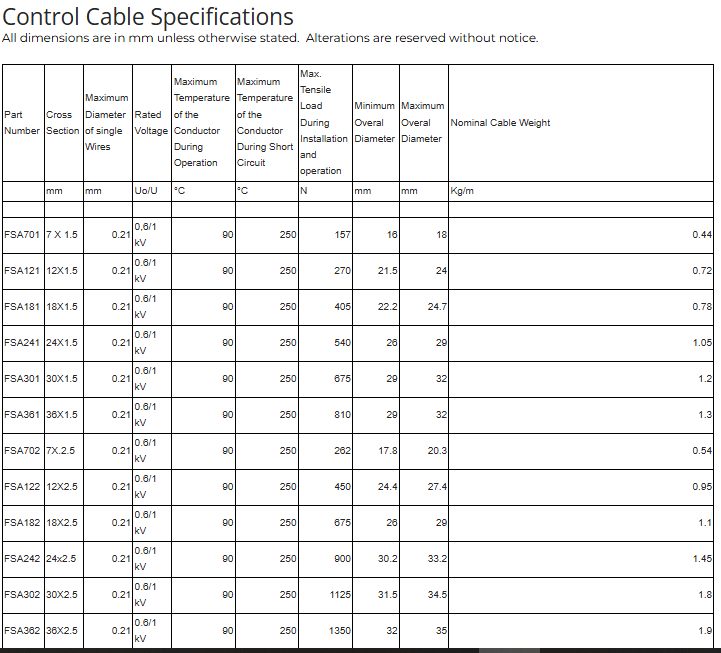

⚙ Specifications
- Models: TRATOSMART® (N)SHTOU-JZ & JZK*
- Rated Voltage: 0.6/1 kV
- Maximum Voltage: AC 0.7/1.2 kV
- AC Test Voltage: 3.5 kV
- Tinned Flexible Copper Conductors (Class 5)
- EPR Insulation (Type 3GI3)
- Inner Sheath: PCP
- Anti-Torsional Protection
- Outer Sheath: 5GM3 Rubber
- Manufactured to VDE 0250 Part 814 Standards
