Designed for suspended control applications, our Pendant Cable delivers exceptional flexibility, tensile strength and long-term reliability. Featuring integrated steel support elements, extra fine copper conductors and a weather-resistant PVC sheath, it is ideal for cranes, hoists, pendant control stations, cableways and high-bay warehouse systems. Built to perform under continuous movement and demanding industrial conditions, it provides dependable operation with self-supporting installation lengths of up to 150 metres.
✔ Benefits
- Designed for suspended control applications
- Integrated steel support elements
- Self-supporting installations up to 150 m
- Excellent flexibility for continuous movement
- Weather-resistant PVC outer sheath
- Cold-weather flexibility
- Extra fine copper conductors
- Long service life in demanding environments
- Ideal for cranes, hoists and cableways

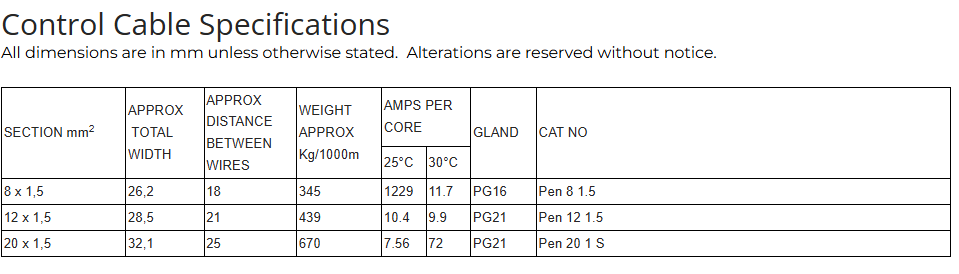

⚙ Specifications
- Working Voltage: 300/500 V
- Test Voltage: 3000 V
- Temperature Range: -15°C to +70°C
- Minimum Bending Radius: 20 × Cable Diameter
- Extra Fine Copper Conductors (Class 6)
- Special PVC Core Insulation
- Weather-Resistant PVC Outer Sheath
- 2 × Integrated Steel Support Elements (2100 N each)
- Insulation Resistance: 20 MΩ × km
- Manufactured to VDE 0250 Standards
