Medium Voltage Power Cable
TRATOSFLEX® ES
Reduced Weight • Advanced Electrical Screening • Engineered for Heavy Industrial Power Systems
TRATOSFLEX® ES Medium Voltage Power Cable is engineered to deliver reliable electrical performance in demanding industrial environments. Manufactured with highly flexible conductors, HEPR rubber insulation and a durable 5GM3 rubber outer sheath, it combines reduced cable dimensions with exceptional flexibility and mechanical strength. Its advanced extruded semiconductive screen provides uniform electrical stress distribution, while the anti-torsional protection ensures dependable performance on cable reels, mining equipment, port cranes and other continuously moving heavy-duty applications.
✔ Key Benefits
- Reduced cable weight and dimensions
- Highly flexible conductor design
- Advanced extruded semiconductive screen
- Excellent dielectric performance
- HEPR rubber insulation for demanding environments
- Integrated anti-torsional protection
- Heavy-duty 5GM3 rubber outer sheath
- Designed for continuous industrial movement
- Ideal for mining, cranes and cable reel applications

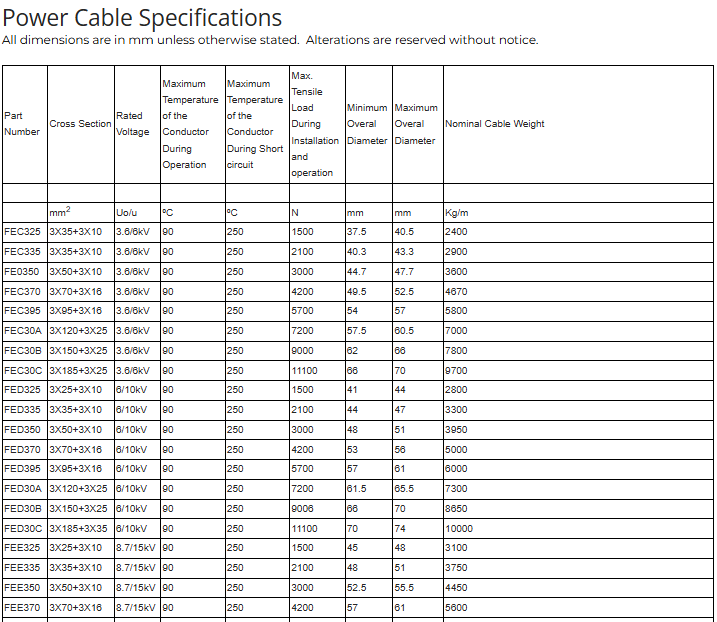

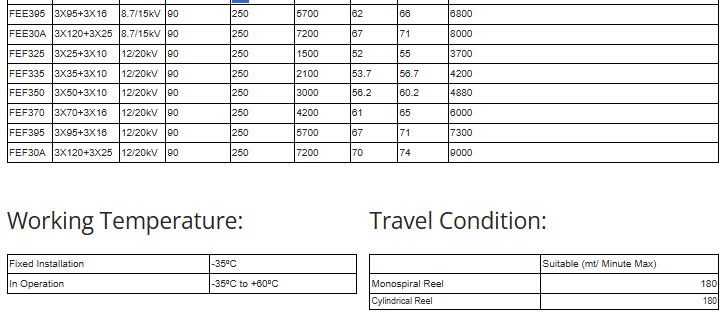

⚙ Technical Specifications
Model
TRATOSFLEX® ES (TSCGEWOU)
Standards
VDE 0250 & HD 620 S1
Rated Voltage
3.6/6 • 6/10 • 8.7/15 • 12/20 kV
Maximum Voltage
7.2 • 12 • 18 • 24 kV AC
AC Test Voltage
11 • 17 • 24 • 32 kV
Conductor
Extra Flexible Copper (Beyond Class 5 VDE 0295)
Insulation
HEPR with Extruded Semiconductive Screen
Ground Conductor
Semiconductive Layer
Protection
Inner Sheath with Anti-Torsional Layer
Outer Sheath
5GM3 Red Rubber
Screen Resistance
Maximum 500 Ω (VDE 0472 Part 512)
Applications
Cable Reels, Cranes, Mining Equipment, Ports & Heavy Industrial Machinery
