Medium Voltage Power Cable TRATOSFLEX® With Fibre Optic
Medium Voltage Power Cable with Fibre Optic
TRATOSFLEX® ES + Fibre Optic
Medium Voltage Power • Integrated Fibre Optic • Built for Critical Industrial Applications
TRATOSFLEX® ES is a premium medium-voltage power cable designed for the most demanding industrial applications. Combining highly flexible tinned copper conductors with integrated fibre optic communication, HEPR rubber insulation and a heavy-duty 5GM3 rubber sheath, it provides outstanding electrical performance, reduced cable dimensions and exceptional mechanical durability. Its advanced extruded semiconductive screen ensures uniform electrical stress distribution, while anti-torsional protection makes it ideal for cable reels, mining equipment, port cranes and heavy industrial machinery where both power and data transmission are required.
✔ Key Benefits
- Integrated fibre optic communication
- Reduced cable weight and overall dimensions
- Advanced extruded semiconductive screen
- Highly flexible tinned copper conductors
- Reduced halogen construction
- Excellent resistance to mechanical stress
- Anti-torsional protection for dynamic applications
- Suitable for cable reels and mobile equipment
- Reliable power and data transmission in one cable

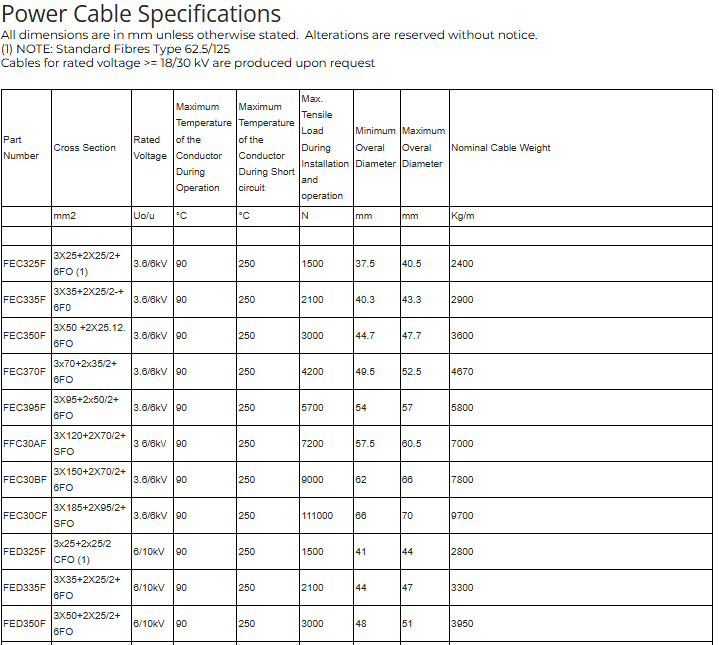

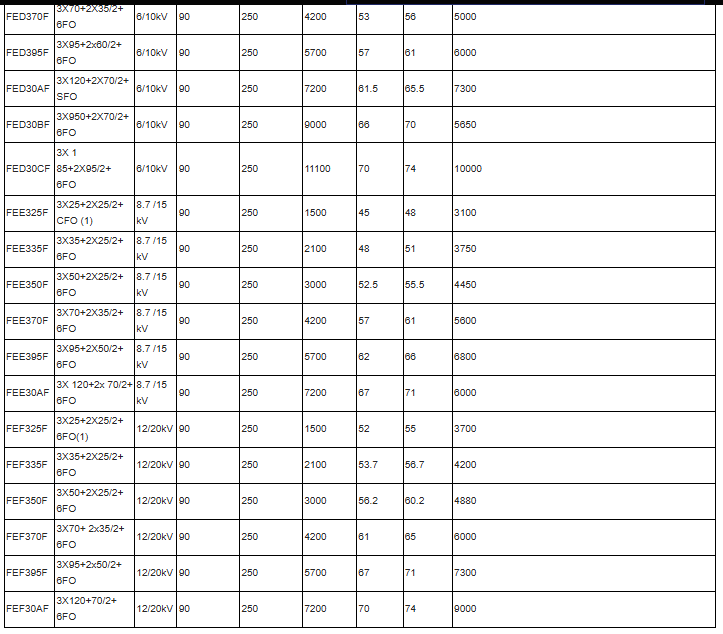

⚙ Technical Specifications
Model
TRATOSFLEX® ES (TSCGEWOU + LWL)
Standards
VDE 0250 & HD 620 S1
Rated Voltage
3.6/6 • 6/10 • 8.7/15 • 12/20 kV
Maximum Voltage
7.2 • 12 • 18 • 24 kV AC
AC Test Voltage
11 • 17 • 24 • 32 kV
Conductor
Tinned Copper (Extra Flexible)
Insulation
HEPR with Extruded Semiconductive Screen
Ground Conductor
Semiconductive Layer
Communication
Integrated Optical Fibre Cable
Outer Sheath
5GM3 Red Rubber with Anti-Torsional Protection
