Low Voltage Power Cable TRATOSMART®
Low Voltage Power Cable
TRATOSMART® Power Cable
Compact Design • Heavy-Duty Performance • Built for Dynamic Industrial Applications

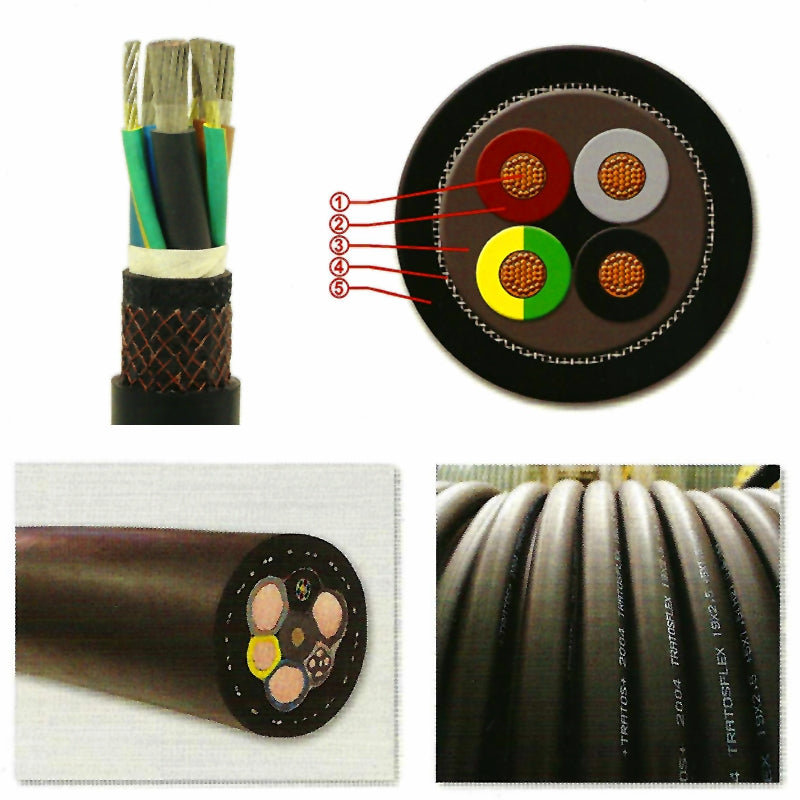

TRATOSMART® Low Voltage Power Cable is a premium rubber-insulated power cable designed for demanding industrial environments where flexibility, durability and reduced cable dimensions are essential. Engineered with a highly flexible tinned copper conductor, EPR rubber insulation and a robust black polychloroprene outer sheath, it delivers exceptional resistance to mechanical stress, abrasion and harsh operating conditions. Available in standard and mono spiral drum duty versions, TRATOSMART® is the ideal solution for cranes, cable reels, material handling equipment and heavy industrial machinery.
✔ Key Benefits
- Compact reduced-dimension cable design
- Excellent flexibility for continuous movement
- Suitable for mono spiral drum applications
- High-quality EPR rubber insulation
- Heavy-duty polychloroprene outer sheath
- Integrated anti-torsional protection
- Outstanding resistance to industrial wear
- Ideal for cable reels and crane systems
- Long operational service life
⚙ Technical Specifications
Models
(N) SHTOU-J & (N) SHTOU-JK*
Rated Voltage
0.6 / 1 kV
Maximum Voltage
AC 0.7 / 1.2 kV
Voltage Test
3.5 kV
Conductor
Tinned Copper Class 5 (VDE 0295)
Insulation
EPR 3GI3 Rubber
Protection
Anti-Torsional Layer
Outer Sheath
5GM3 Black Polychloroprene
Applications
Power Supply, Cable Drums, Cranes & Industrial Equipment
Special Option
* (N) SHTOU-JK Produced on Request
