HIGH-TEMPERATURE CABLES Multi core- GL/P Armored
High Temperature Industrial Cable
Silicone Steel Braided Control Cable
Extreme Heat Resistance • Heavy Mechanical Protection • Built for Steel Mills
Designed for environments where conventional PVC cables become brittle due to extreme temperature fluctuations, this Silicone Steel Braided Control Cable delivers outstanding performance in demanding industrial applications. Featuring silicone rubber insulation, a durable silicone outer sheath, protective glass fibre braiding and galvanized steel wire armour, it provides exceptional resistance to heat, oil, ozone, oxidation and mechanical damage. During fire exposure, the silicone insulation forms a protective silicon dioxide layer around the conductor, helping maintain circuit integrity and reducing the risk of short circuits.
✔ Key Benefits
- Excellent heat resistance from -60°C to +180°C
- Short circuit temperature up to +200°C
- Ideal for steel works and foundries
- Outstanding resistance to oils and fats
- Resistant to oxygen and ozone
- Fire-resistant silicone insulation
- Heavy-duty galvanized steel wire armour
- Excellent mechanical protection
- Long service life in harsh environments

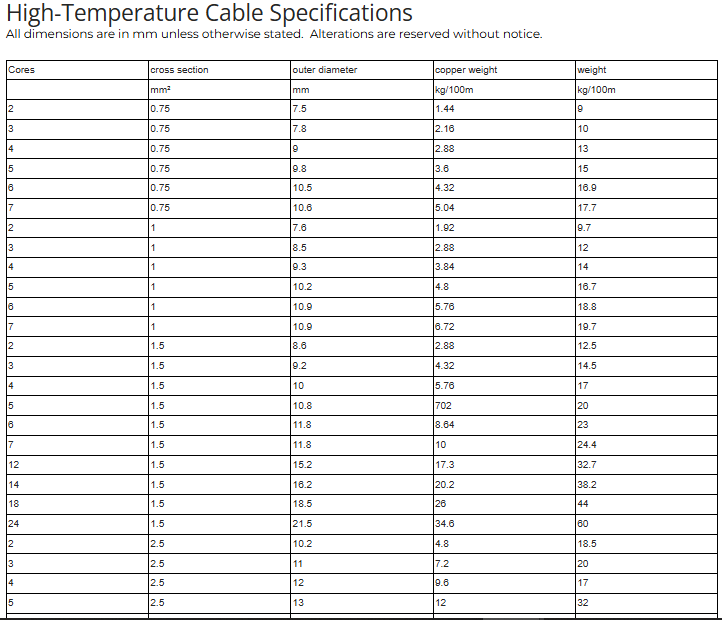

⚙ Technical Specifications
Conductor
Tinned Copper Class 5
Standard
VDE 0295 Class 5
Core Insulation
Silicone Rubber
Outer Sheath
Silicone Rubber (Red-Brown)
Protection
Glass Fibre Braiding
Armour
Galvanized Steel Wire Braid
Temperature Range
-60°C to +180°C
Short Circuit
Up to +200°C
Bending Radius
20 × Cable Diameter
Applications
Steel Works, Foundries, Rolling Mills, Metallurgical Plants & High-Temperature Industrial Equipment
