Control Cable – Basket Operation
Engineered for gravity-fed collector systems in basket applications, the TRATOSCOIFLEX 300/500 V control cable delivers exceptional flexibility, mechanical strength and long-term reliability. Designed for spreader connections, it features durable rubber insulation, a robust black PCP sheath and an integrated Kevlar support member to withstand continuous movement in demanding industrial environments.
✔ Benefits
- Designed for gravity-fed collector systems
- Ideal for basket and spreader applications
- Flexible construction for continuous movement
- Heavy-duty rubber insulation and sheath
- Integrated Kevlar support for added strength
- Excellent resistance to wear and mechanical stress
- Long service life in industrial environments
- Reliable electrical performance

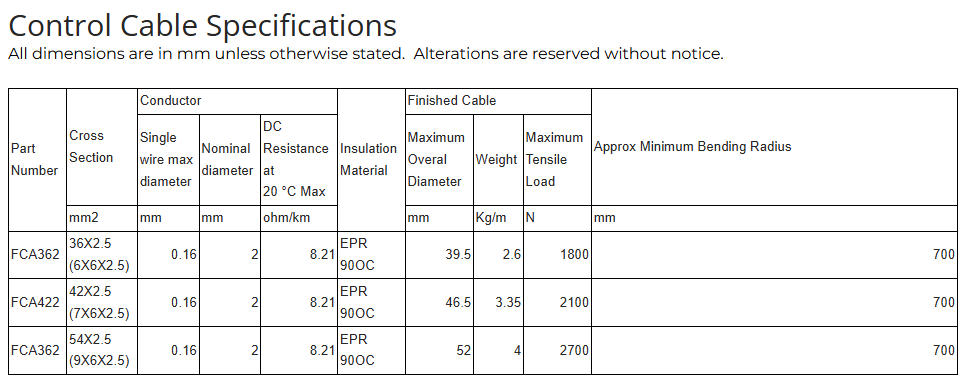

⚙ Specifications
- Model: TRATOSCOIFLEX 300/500 V
- Rated Voltage: 300/500 V
- Maximum Voltage: AC 550 V
- AC Test Voltage: 2 kV
- Configuration: 6 × 2.5 mm² Group
- Kevlar reinforcement
- Black PCP outer sheath
- Clockwise coiling recommended during installation
