Heavy-Duty Mining Cable
Designed for the toughest mining and industrial environments, our heavy-duty rubber sheathed mining cable delivers exceptional flexibility, mechanical strength and long-term durability. Manufactured with finely stranded copper conductors, high-quality EPR insulation and a rugged polychloroprene outer sheath, it is built to withstand continuous movement, abrasion, oil exposure and demanding operating conditions.
✔ Benefits
- Heavy-duty construction for mining applications
- Excellent flexibility for moving equipment
- High resistance to abrasion and tearing
- Oil-resistant and flame-retardant outer sheath
- Ozone-resistant EPR insulation
- Fine stranded copper conductors for superior flexibility
- Reliable performance under high mechanical stress
- Long service life in harsh environments

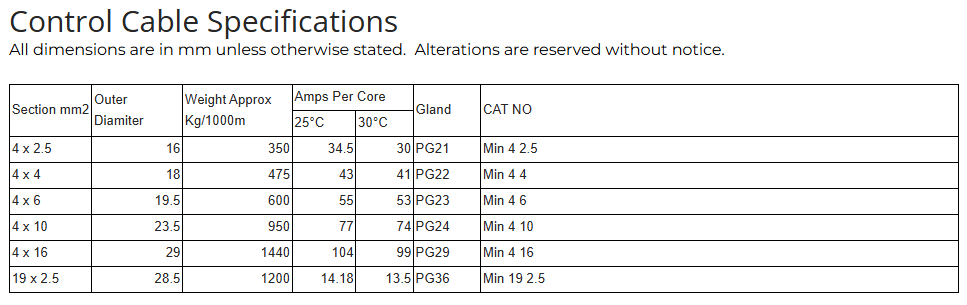

⚙ Specifications
- Working Voltage: 1000 V
- Test Voltage: 2500 V
- Temperature Range: -30°C to +90°C (flexing)
- Static Temperature: -45°C to +90°C
- Minimum Bending Radius: 15 × Cable Diameter
- Fine stranded copper conductors (VDE 0295 Class 5)
- Oil-resistant CR rubber outer sheath
- Yellow outer sheath for high visibility
