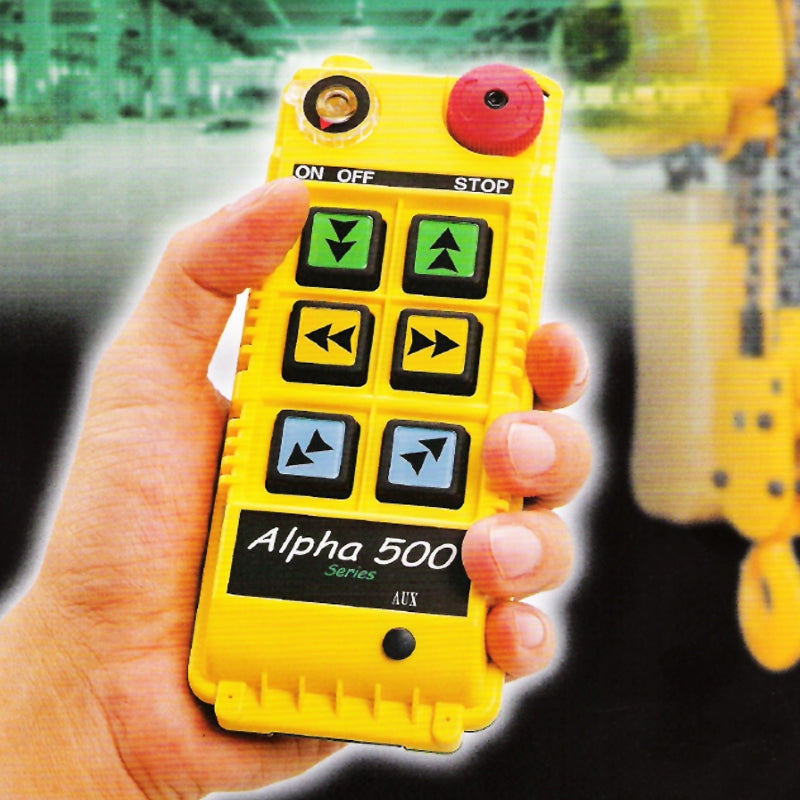

Alpha 500
Alpha 500
š§ Advanced Microprocessor Control
Highly developed software provides error-free encoding, transmitting, receiving, decoding and relay control using CRC checking and Hamming error recovery technology.
š” Safety System
Includes transmitter fault detection, low voltage warning, automatic shut-off, receiver fault detection and MAIN relay disconnect protection during faults, interference or out-of-range operation.
š Secure Wireless Operation
32,768 unique ID codes and selectable RF channels ensure only matched transmitters operate the receiver, reducing interference from external sources.
š Energy Efficient
Advanced power-saving circuits provide over 150 hours of continuous operation using only two standard AA alkaline batteries.
š” RF Channel Selection
PLL synthesized RF module with 20 selectable channels (301MHz) or 30 selectable channels (433MHz). Removable RF board allows easy frequency replacement.
š§ Heavy Duty Protection
Fully sealed composite housings protect against dust, water, oil, acids, alkaline substances, heat and sunlight for demanding industrial environments.
š® Industrial Pushbuttons
Custom two-speed pushbuttons designed for over one million press cycles with reliable snap-action feedback, even while wearing gloves.
š Certified Quality
Manufactured according to FCC Part 15, CE/CB European directives, Industry Canada specifications and ISO 9001 quality standards. No site licence required.

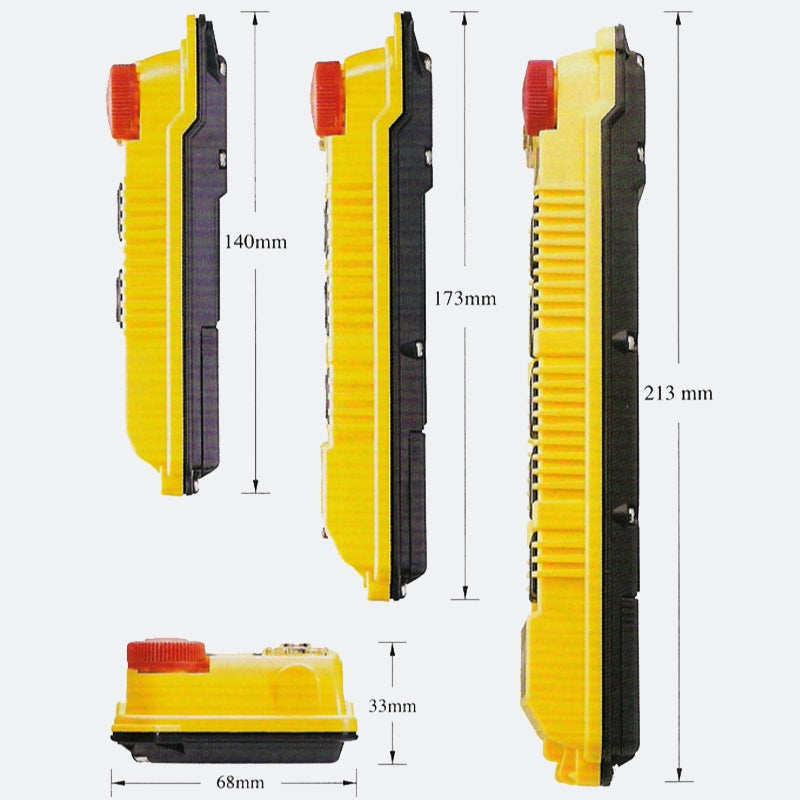

4 Button Models: 200g
6 Button Models: 240g
10 Button Models: 290g
Ideal for crane systems requiring auxiliary hoist and trolley changeover functions with 5ā6 motion control capability.
Dedicated safety relay monitors MAIN relay operation and immediately shuts down the system if faults occur.
Available Alpha 500 Models
4 Two-Speed Pushbuttons
6 One-Speed + AUX Button
6 Two-Speed Pushbuttons
6 Two-Speed + AUX Button
9 One-Speed + SELECT I/II
6 Two-Speed + 4 One-Speed
8 Two-Speed + 2 One-Speed
10 Two-Speed Pushbuttons
6 Two-Speed + 3 One-Speed + SELECT I/II
8 Two-Speed + 1 One-Speed + SELECT I/II
